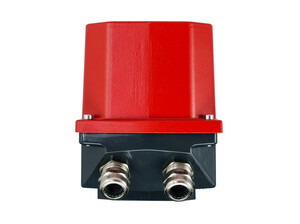

Electronic Actuator TPS40 - 40 Nm
Your advantages at a glance:
- Flexible shapes of the output shaft possible due to inner square in combination with optional plug-in shafts
- Optionally with NOVOTEC/ CONTELEC 5 kΩ potentiometer for feedback
- Electrical manual adjustment via push-button OPEN / CLOSED
- Degree of protection IP65
- Individualisable
Note: Further configurations on request.
Typ | 668M2040 type “standard” |
Output shaft [mm] | Internal square 11.1 x 11.1 mm |
Voltage [V] | 230 VAC / 50 Hz |
Run time actuator | 60 s |
Set angle of rotation | 90° |
Activation | TPS |
Degree of protection | IP65 |
Electric hand feed | OPEN/CLOSED control via internal button |
Ambient temperature | -10 … +60 °C |
LAMTEC offers safety-approved electric actuators for the electronic control of valves and dampers in your combustion systems, all under the motto of “Everything from a single source.”
These actuators comply with the safety requirements for tested potentiometers and their positive locking and backlash-free connection. Four types of actuators are available from stock at LAMTEC: 6 Nm, 20 Nm, 40 Nm and 60 Nm – all with 60-sec. running time. Except for the 60 Nm at 90-sec. running time.
Deviating from these four standard types, LAMTEC can supply actuators up to 200 Nm with optional equipment such as limit switches, potentiometers, and varying running times.
These actuators are exclusively approved for use with LAMTEC combustion and system management systems.
The CONTELEC potentiometer as position feedback is certified for connection to CMS.
The NOVOTEC potentiometer as position feedback is certified for connection to ETAMATIC, FMS and VMS.
