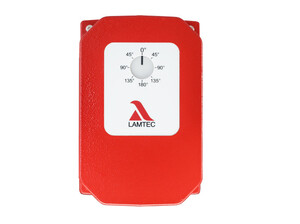

Actuator TPS06-6Nm
Your advantages at a glance:
- Flexible forms of the output shaft are possible due to the internal square in combination with optional plug-in shafts
- Electric manual adjustment via button UP / DOWN
- Optionally available with potentiometer NOVOTEC/ CONTELEC, 5 kΩ as feedback
- Degree of protection IP65
- Customizable
Typ | 668M2006 type “standard” |
Output shaft [mm] | Internal square 11.1 x 11.1 mm |
Voltage [V] | 230 VAC / 50 Hz |
Run time actuator | 60 s |
Set angle of rotation | 90° |
Activation | TPS |
Degree of protection | IP65 |
Electric hand feed | OPEN / CLOSE controll via internal buttons |
Ambient temperature | -10 °C …+60 °C |
To drive the dampers and valves on your firing systems, LAMTEC offers the tried-and-tested and safety-approved actuators for electronic compounds following the motto “Everything from a single source”.
These actuators comply with the safety requirements for tested potentiometers and their positive locking and backlash-free connection. Four types of actuators are available from stock at LAMTEC: 6 Nm, 20 Nm, 40 Nm and 60 Nm – all with 60-sec. running time. Except for the 60 Nm at 90-sec. running time.
Deviating from these four standard types, LAMTEC can supply actuators up to 200 Nm with optional equipment such as limit switches, potentiometers, and varying running times.
These actuators are exclusively approved for setting control elements of firing systems in conjunction with LAMTEC firing and compound management systems type ETAMATIC, FMS or VMS.
The CONTELEC potentiometer as position feedback is certified for connection to CMS.
The NOVOTEC potentiometer as position feedback is certified for connection to ETAMATIC, FMS and VMS.
