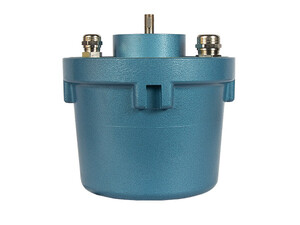

Actuator ATEX / IECEx for VMS, FMS, ETAMATIC
Your advantages at a glance:
- Robust design
- Approved according to ATEC II2G Ex d IIC T6 Gb
- Approved according to IECEx Ex d IIC T6 Gb
Type | 662R2140 (die-cast) type “standard” 662R2141 (Stainless steel) type “standard” |
Output shaft [mm] | Ø12 x 25 mm, parallel key 4 x 4 x 14 m |
Voltage [V] | 230 VAC / 50 Hz |
Run time | 60 s |
Set angle of rotation | 90° |
Activation | TPS |
Degree of protection | IP65 |
Electric hand feed | OPEN / CLOSE control via internal button |
Approvals | according to ATEX
|
Ambient temperature | according to ATEX |
II2G Ex d IIC T6 GbTo drive the dampers and valves on your firing systems, LAMTEC offers the tried-and-tested and safety-approved actuators for electronic compounds following the motto “Everything from a single source”.
These actuators comply with the safety requirements for tested potentiometers and their positive locking and backlash-free connection. Four types of actuators are available from stock at LAMTEC: 6 Nm, 20 Nm, 40 Nm and 60 Nm – all with 60-sec. running time. Except for the 60 Nm at 90-sec. running time.
These actuators are approved exclusively for operating control elements in conjunction with LAMTEC combustion and integrated management systems.
